G4500

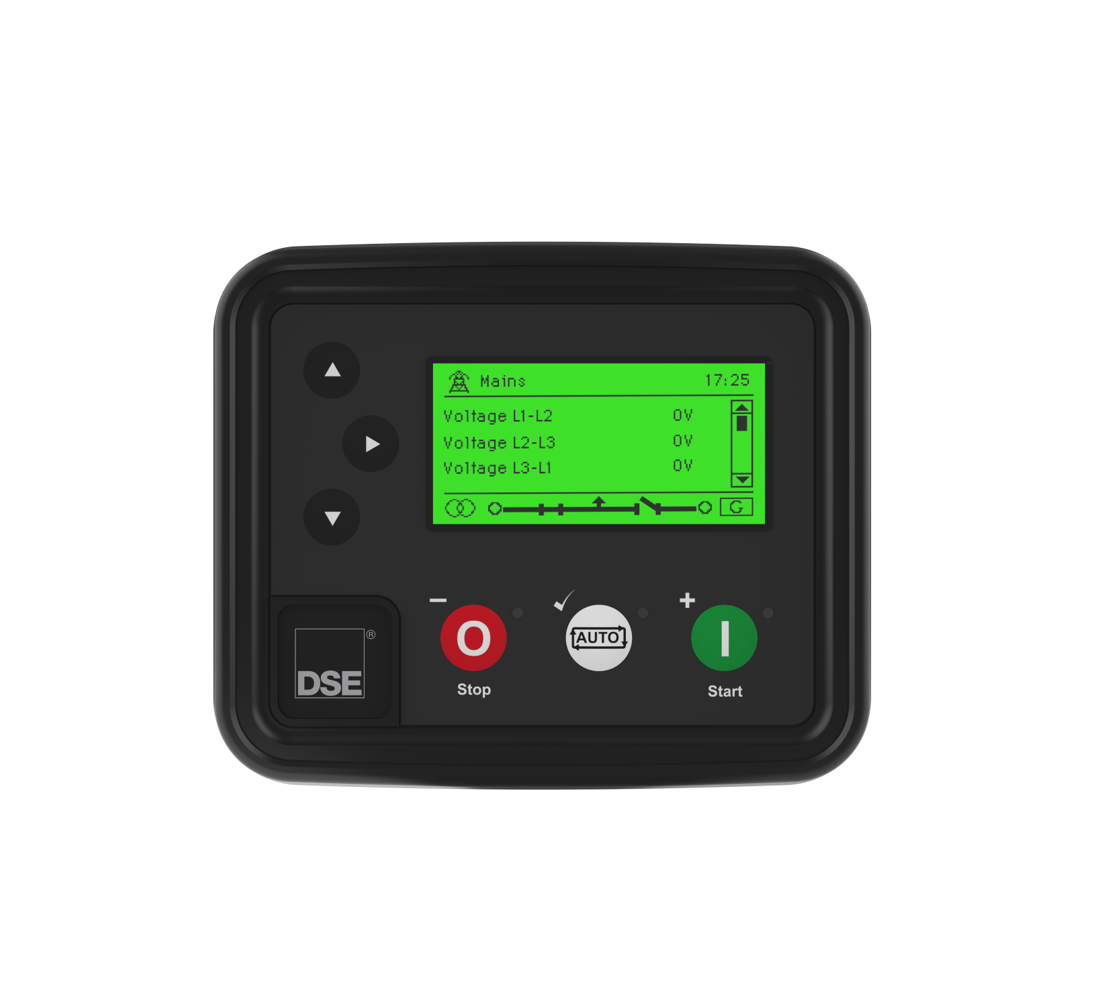

The DSEG4500 Compact Single Genset Controller and DSEG4501 Compact Single Genset Controller with RS485 are part of the next-generation DSEG-Series platform, designed for versatility and performance. User-configurable for Remote Start (RS) or Automatic Mains (Utility) Failure (AMF) applications, they offer a robust feature set tailored to single genset operations.

Selected features include real-time monitoring of generator and load power, engine speed, oil pressure, coolant temperature, frequency, voltage, current, power, and fuel level. All critical data is displayed on a dedicated multi-line, text and icon high-resolution screen.

The DSEG4500 and DSEG4501 support both electronic J1939 (CAN) and non-electronic (alternator frequency sensing) engines, making them compatible with a wide range of fuel types including diesel, gas, and petrol. A generous number of flexible inputs, outputs, and protection features ensure adaptability for diverse applications.

Fully programmable via the DSE Configuration Suite software, the DSEG4500 and DSEG4501 deliver the renowned DSE easy setup experience, providing seamless integration and control.

Specificaties

Specification

DC Supply

CONTINUOUS VOLTAGE RATING 8 V to 35 V DC continuous CRANKING DROPOUTS Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 10 V. This is achieved without the need for internal batteries. Backlight will not be maintained during cranking. MAXIMUM OPERATING CURRENT 200 mA at 12 V, 120 mA at 24 V MAXIMUM STANBY CURRENT 65 mA at 12 V, 35 mA at 24 V CHARGE ALTERNATOR EXCITATION / FAIL RANGE 0 V to 35 V

Voltage Measurement

NUMBER 2 MEASUREMENT INPUTS 3 Phase + Neutral Remote Start Controller: Generator Only Automatic Mains (Utility) Failure Controller: Generator and Mains (Utility) VOLTAGE RANGE

15 V to 415 V Phase to Neutral

25 V to 720 V Phase to Phase FREQUENCY RANGE 3.5 Hz to 75 Hz RESOLUTION

1 V Phase to Neutral

2 V Phase to Phase

0.1 Hz

ACCURACY ±1 % Phase to Neutral ±2 % Phase to Phase ±0.05 Hz

Current Transformer Measurement

NUMBER 3 MEASUREMENT INPUTS Remote Start Controller: Generator Only Automatic Mains (Utility) Failure Controller: Generator or Load CURRENT RANGE 0 A to 5 A RESOLUTION 0.5 % ACCURACY ±1 %

Inputs

ANALOGUE Number: 3 Type: Negative Switching Digital Input, Resistive Analogue Input, Current Analogue Input or Voltage Analogue Input DIGITAL Number: 4 Type: Negative Switching Digital Input MAGNETIC PICK-UP INPUT Voltage Input Range: 0.5 VPeak to 70 VPeak Frequency Input Range: 1 Hz to 10 kHz

Outputs

DIGITAL Number: 6 Type: Positive Switching DC Outputs AUXILIARY SUUPLY OUTPUT Number: 1 Rating: 20 mA at 5 V

Communications

USB B 1 Programming Port CAN 1 CAN Port RS485 1 Fully Isolated RS485 Port (G4501-01 Only)
